Norco's Prototype DH Bike Explained On Video

Feb 10, 2011 at 12:33

You may have seen some photos floating around here or there of Norco's new prototype DH rig, but inside we have one of the main men behind the design giving to give you the lowdown on video. Watch and learn!

Watch the video below to learn more about Norco's prototype DH bike:

You need to upgrade your Flash Player
Click here to install it

Views:32814 Faves:137 Comments:47 Add to my Favorites

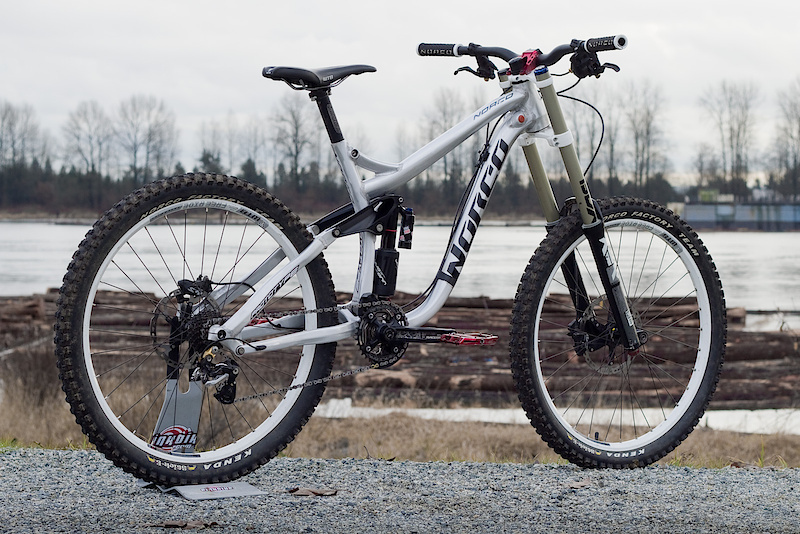

Sometimes you see the neatest things while out on a stroll at the river. This is Norco's prototype downhill rig, one of only six in world, just outside of their Port Coquitlam, B.C., headquarters. Norco factory riders have been testing these rigs and design changes for the next round of protos are already in play. Keep in mind that production is still quite a ways off, it could look quite different by the time it's ready for production.

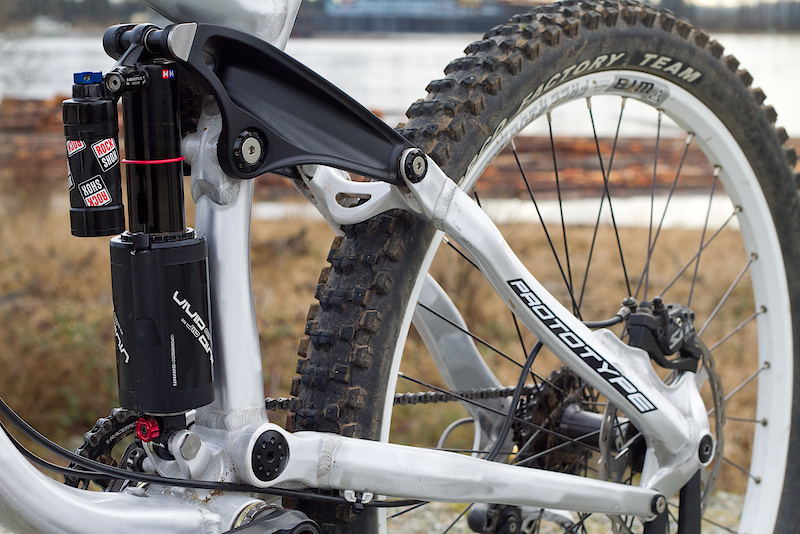

A closer look makes it very clear that the shock isn't floating, but mounted solidly to the main triangle. Yes, from a distance it may resemble other rigs... No, it is not the same and it will have a ride personality all to its own. There are only so many ways to layout a bike, and as designs progress it will be the smallest of margins that will make one stand out from another. Two bikes may share a similar silhouette, but a chain stay being slightly longer on one or a pivot point that differs by just a few millimeters, let alone the angles, will result in massive differences on the trail.

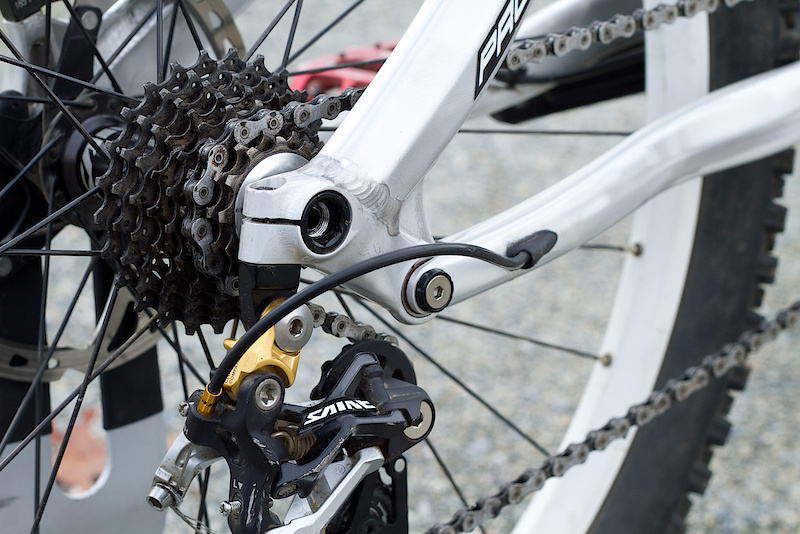

The back of the prototype sports a clean looking Syntace X12 thru-axle system that should be slightly lighter than what has been used in the past. Internal routing for the rear derailleur's shift cable not only keeps it looking orderly, but also prevents the chain from beating on the housing. Like found on all of the other pivots, captive hardware is used to make maintenance easy.

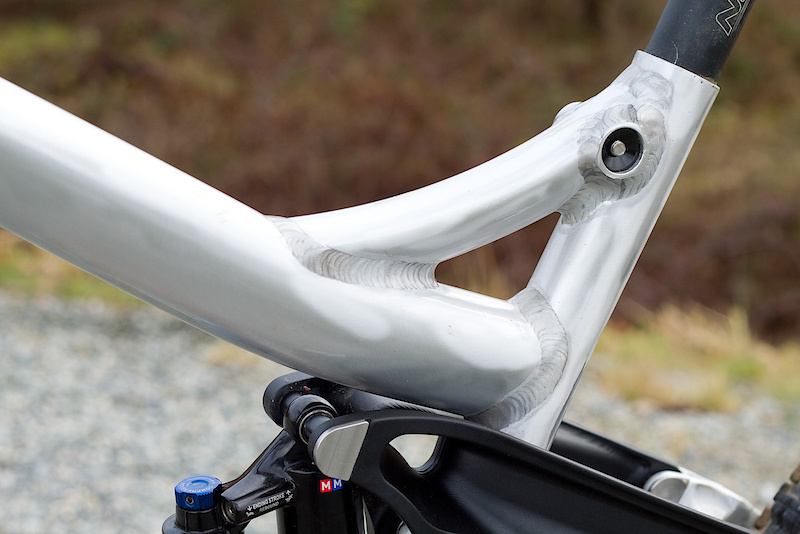

Originally used on road bikes, then BMX before it trickled over to mountain bikes, an integrated seatpost clamp makes for a tidy looking setup. By going this route a keyway on the seat tube is no longer needed, which P.J. says eliminates a weak point inherent to the more traditional design that uses a separate collar.

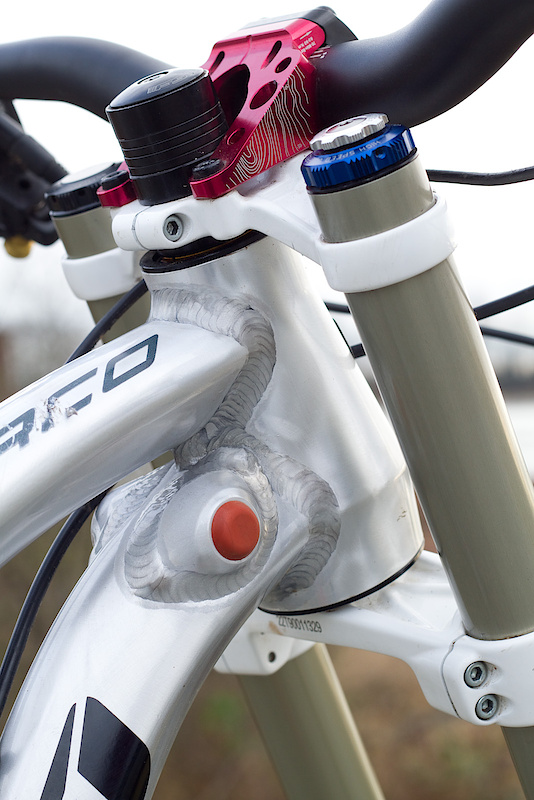

The prototype uses these smart built in bumpers to prevent damage from the fork's stanchion tubes in the event of a big off. There are a few manufacturers incorporating these into their latest bikes and I'm sure we'll see many more in the future; they certainly make a lot of sense.

Visit the Norco website to see their current lineup and learn more about A.R.T Suspension.

Do you like what you see from Norco? Excited for the new machine to hit production? Let's hear what you think - put those thoughts down below!
