Spank Components - Sea Otter Day 4

by Mike Levy
Apr 17, 2011 at 22:36

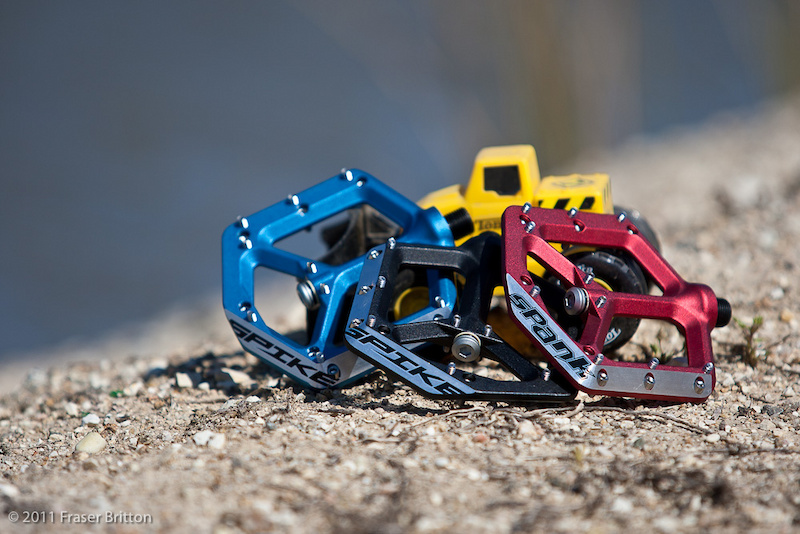

Spank's Spike pedals received quite a bit of attention during our preview article due to their unique looks and ultra thin 12mm profile, but there is more to the story than those two facts. The large platform spins on an oversized inboard sealed bearing and a thin outboard bushing that allows the pedal to have such a slim profile, while the leading and side edges of the body are shaped for more clearance and to glance off of impacts.<br><br><span style='font-size:19px'>Spank Spike pedal details:</span><br><br>- Thin 12mm pedal body<br>- Large 90 sqcm platform<br>- 19 adjustable pins per pedal<br>- Cold forged and CNC optimized body<br>- Chamfered leading and side edges for improved impact deflection and more clearance<br>- Full compliment sealed inboard bearing<br>- Reduced diameter Igus outboard bushing<br>- Heat treated steel pedal axle<br>- Proprietary 'Spank Friction Seal' for durability and maintenance<br>- Reduced Q-factor<br>- Sub 400g weight (<i>claimed</i>) with cromo axle and alloy platform<br>- MSRP $125 USD
Spank's Spike pedals received quite a bit of attention during our preview article due to their unique looks and ultra thin 12mm profile, but there is more to the story than those two facts. The large platform spins on an oversized inboard sealed bearing and a thin outboard bushing that allows the pedal to have such a slim profile, while the leading and side edges of the body are shaped for more clearance and to glance off of impacts.

Spank Spike pedal details:

- Thin 12mm pedal body
- Large 90 sqcm platform
- 19 adjustable pins per pedal
- Cold forged and CNC optimized body
- Chamfered leading and side edges for improved impact deflection and more clearance
- Full compliment sealed inboard bearing
- Reduced diameter Igus outboard bushing
- Heat treated steel pedal axle
- Proprietary 'Spank Friction Seal' for durability and maintenance
- Reduced Q-factor
- Sub 400g weight (claimed) with cromo axle and alloy platform
- MSRP $125 USD

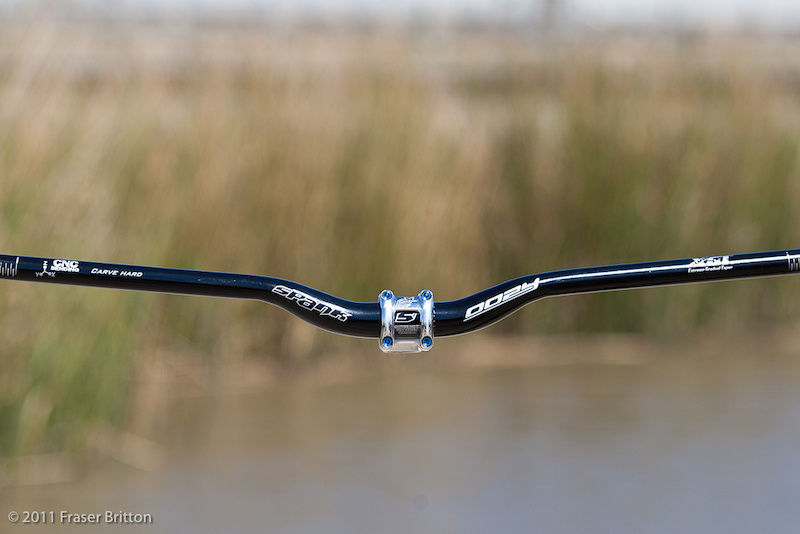

There is a good chance that Spank's Oozy LTD bar has more technology packed into it than any other aluminum bar out there, with the result being a 700mm wide trail/all-mountain bar that weighs in between 208 and 220 grams depending on the rise option. The bar features Spank's Dual Extreme Gradual Taper, as well as a stem clamping area that Spank takes great pains to ensure is perfectly cylindrical - not something you'll see on all of the other bars when you inspect them closely. The bars also sport reinforced ends to keep them from being damaged when the bike hits the ground.<br><br><span style='font-size:19px'>Spank Oozy LTD bar details:</span><br><br>- Rise options: 5/15/30mm<br>- Width: 700mm<br>- Colors: white or black<br>- Weight: 208g to 220g
There is a good chance that Spank's Oozy LTD bar has more technology packed into it than any other aluminum bar out there, with the result being a 700mm wide trail/all-mountain bar that weighs in between 208 and 220 grams depending on the rise option. The bar features Spank's Dual Extreme Gradual Taper, as well as a stem clamping area that Spank takes great pains to ensure is perfectly cylindrical - not something you'll see on all of the other bars when you inspect them closely. The bars also sport reinforced ends to keep them from being damaged when the bike hits the ground.

Spank Oozy LTD bar details:

- Rise options: 5/15/30mm
- Width: 700mm
- Colors: white or black
- Weight: 208g to 220g

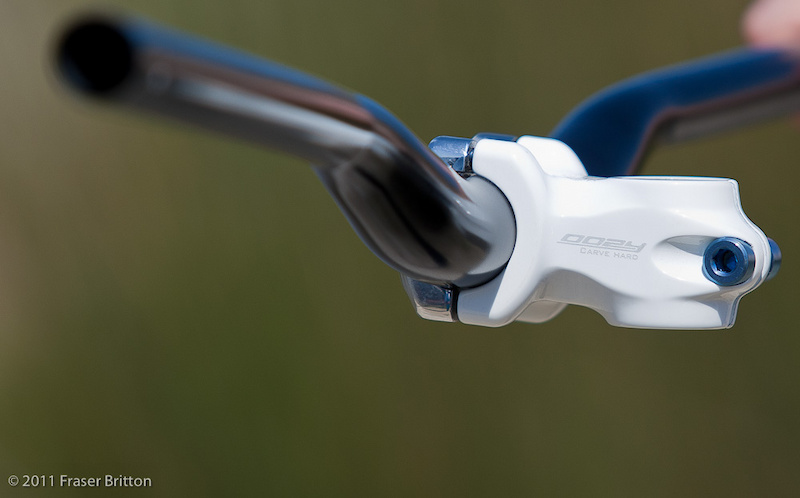

If you're going to run the trick Oozy LTD bar, you should probably bolt it up to their matching Oozy LTD stem. At just 125-150- grams, the Oozy stem is light enough to brag about it's weight, but it is still rated for trail or all-mountain use. It comes complete with titanium bolts, including Spank's massive high torque single steerer clamp bolt.<br><br><span style='font-size:19px'>Spank Oozy LTD stem details:</span><br><br>- 3D Forged CNC Construction<br>- Length options: 50/60/7080mm<br>- Titanium hardware<br>- Uses Spank's Sex Bolt High Torque Lock-Down steerer clamp bolt<br>- Weight: 125-150 grams
If you're going to run the trick Oozy LTD bar, you should probably bolt it up to their matching Oozy LTD stem. At just 125-150- grams, the Oozy stem is light enough to brag about it's weight, but it is still rated for trail or all-mountain use. It comes complete with titanium bolts, including Spank's massive high torque single steerer clamp bolt.

Spank Oozy LTD stem details:

- 3D Forged CNC Construction
- Length options: 50/60/7080mm
- Titanium hardware
- Uses Spank's Sex Bolt High Torque Lock-Down steerer clamp bolt
- Weight: 125-150 grams

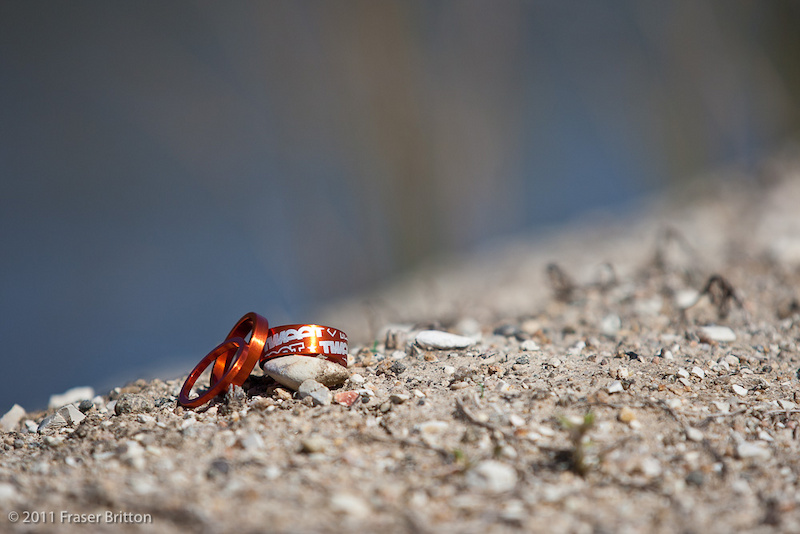

Headset spacers are a simple thing, but it is nice to be able to add some color to your ride. Spank's Tweet Tweet spacers come in six different colors for you to do just that.<br><br><span style='font-size:19px'>Spank Tweet Tweet spacer details:</span><br><br>- 6061 Alloy<br>- 3/6/12mm spacers per pack<br>- fits 1.125 inch steerers<br>- Color options: Magic Black, Aqua Blue, Apple Red, Egg Plant Purple, Zesty Orange and Vanilla White
Headset spacers are a simple thing, but it is nice to be able to add some color to your ride. Spank's Tweet Tweet spacers come in six different colors for you to do just that.

Spank Tweet Tweet spacer details:

- 6061 Alloy
- 3/6/12mm spacers per pack
- fits 1.125 inch steerers
- Color options: Magic Black, Aqua Blue, Apple Red, Egg Plant Purple, Zesty Orange and Vanilla White


Check out the Spank website to see their entire range.


Stay tuned for more from Sea Otter!
