North Shore Billet Direct Mount Stem Risers - First Look

Oct 26, 2011 at 11:33

North Shore Billet Direct Mount Stem spacers

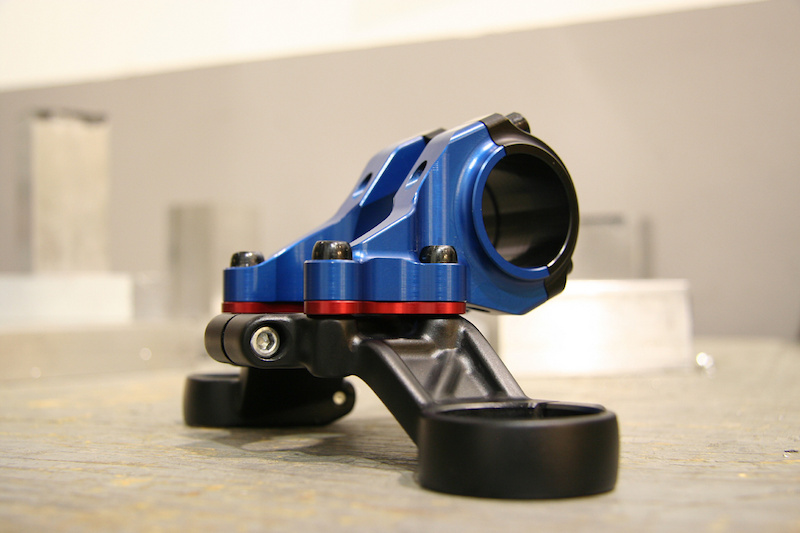

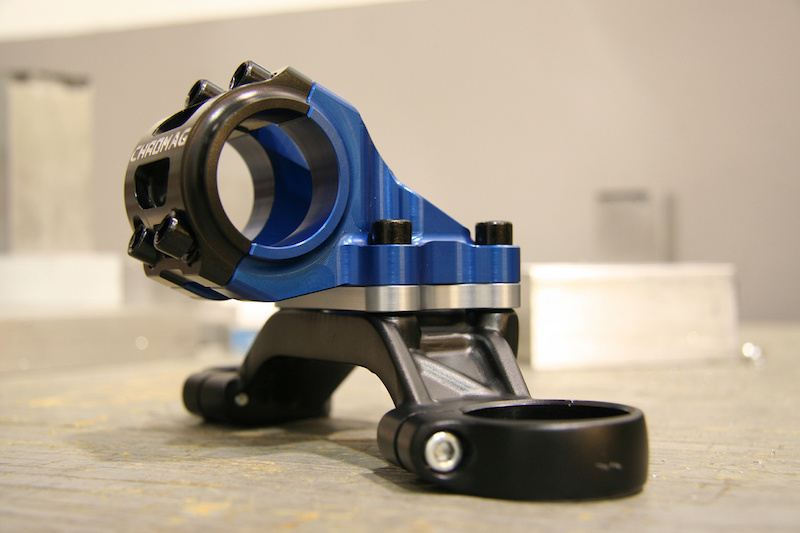

North Shore Billet's 3mm stem spacer fitted under a Chromag Director stem.

Bar height has been a favorite topic amongst riders and racers alike over the past few seasons, with many striving to get it as low as possible. While there can be some advantages to going this route, a lot of riders out there were taking it to extremes and well past where it really makes sense. Thankfully, common sense is starting to prevail and we are seeing heights returning to where they belong, with some even opting to add their own spacers underneath their direct mount stem to dial in the bike for steep terrain. Enter the Canadian machinists at North Shore Billet with their one piece stem risers.

North Shore Billet Stem Spacer Details:

• One piece stem risers
• Three height options: 3mm, 4mm and 6mm
• Stackable for custom heights (longer hardware required for heights over 6mm)
• Includes hardware
• Fits RockShox BoXXer (2009+), Fox 40 and 2012 Marzocchi 888 forks
• Weight: 3mm - 8 grams, 4mm - 12 grams, 6mm - 15 grams
• Colors: red, black and pewter
• Availability: January 2012
• MSRP: $19.00 - Single riser (3,4 or 6mm) with longer hardware included,
• MSRP: $48.00 - Race Pack (3, 4 and 6mm included) with four M6 x 25 screws and four M6 x 30 to replace stock mounting screws. Allows custom heights of 3, 4, 6, 7, 9, or 10mm by stacking risers.

NSB's one piece stem risers are an elegant and simple solution to getting your bar higher for those steep and gnarly courses.

Those with a keen eye may have spotted some World Cup racers tweaking their bar height to better suit the weekend's track, with the steep course used for the Champery World Champs being a perfect example. While not a lot of us have a track that gnarly nearby, being able to easily get your bars a bit higher, without having to remove your top crown to swap headset spacers around, should make adjusting bar height infinitely easier.

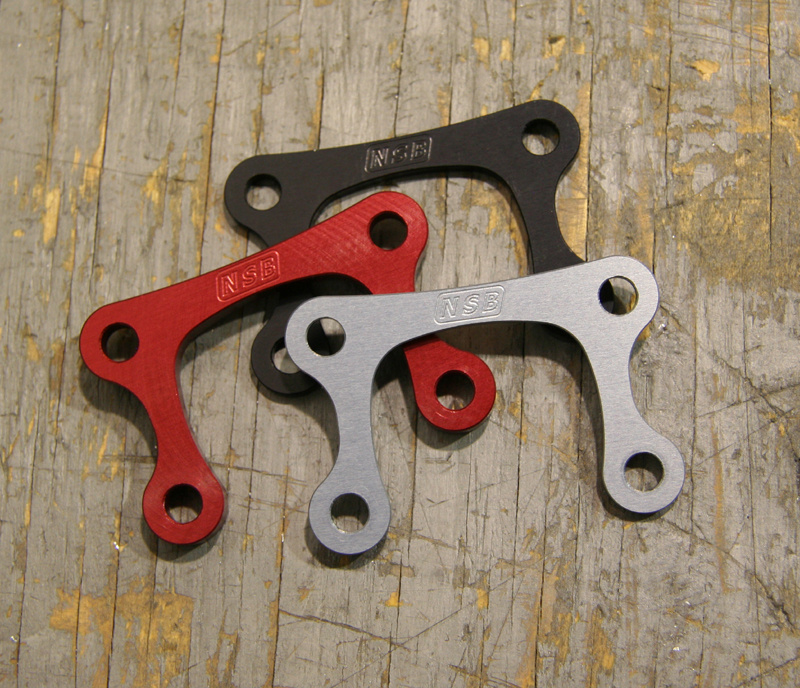

North Shore Billet's direct mount stem spacers are one piece units that are available in three different heights, 3, 4 and 6mm, and come with the required longer hardware. They will be available separately or in NSB's "Race Pack", a kit that includes all available heights and enables you to stack them for up to 10mm of added height. They can be fitted to any top crown that uses the four bolt pattern found on RockShox's BoXXer fork.

www.northshorebillet.com
