New Cane Creek AngleSets - Sea Otter 2011

by Mike Levy
Apr 20, 2011 at 10:08

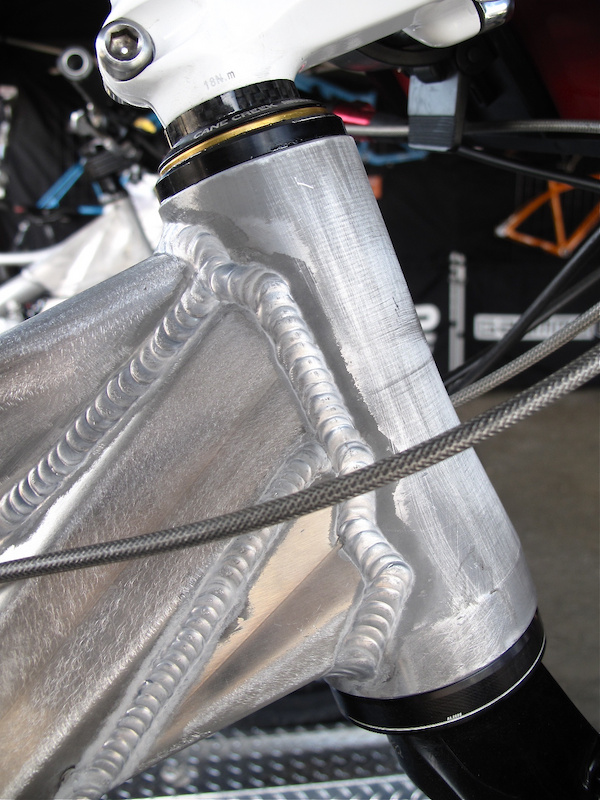

Bikes that use the
Bikes that use the "E2" 44mm upper and 56mm lower head tube bore now have an AngleSet option.


Those riders who ride a Trek, or any other bike that uses a 44 upper bore and 56mm lower bore head tube combined with a tapered steerer fork, should be very happy to see that Cane Creek hasn't forgotten about them, it just took a little bit longer. Trek's Remedy would be the perfect application for this version of the AngleSet, given that Trek steepened the head angle by one degree and shortened the travel up front on the more recent models. This E2 compatible version lets Remedy owners slacken the bike back out to 67 degrees, while still running the stock 150mm travel fork.

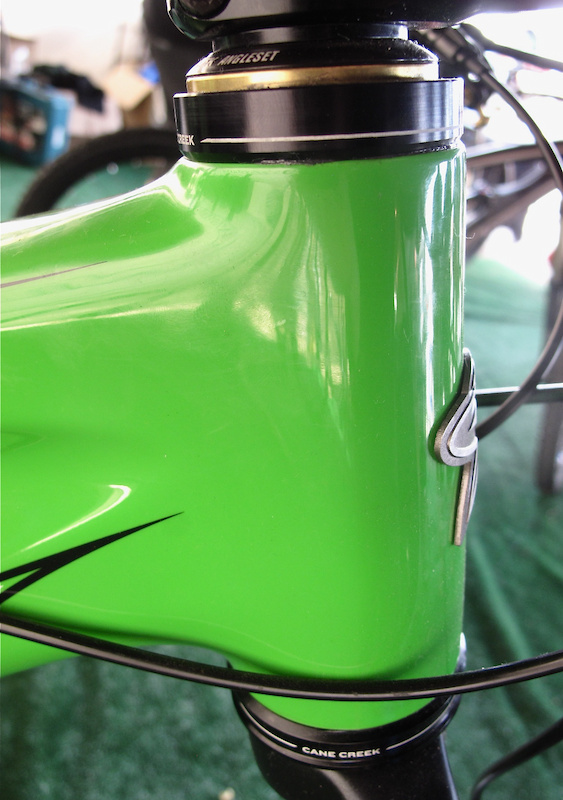

Tapered steerer tubes in 44/49mm head tubes are now a go by moving the eccentric to the upper cup.
Tapered steerer tubes in 44/49mm head tubes are now a go by moving the eccentric to the upper cup.


This neon green Santa Cruz's head tube has a 44mm upper bore and a 49mm lower, along with a tapered steerer fork - a blend that used to be a no-go. It is now possible by moving the eccentric from the lower headset cup to the upper. Just like with the new E2 head tube version shown above, the extra height (and therefore an ever so slackened head angle) is compensated for by the eccentric to give it the exact amount of offset desired.

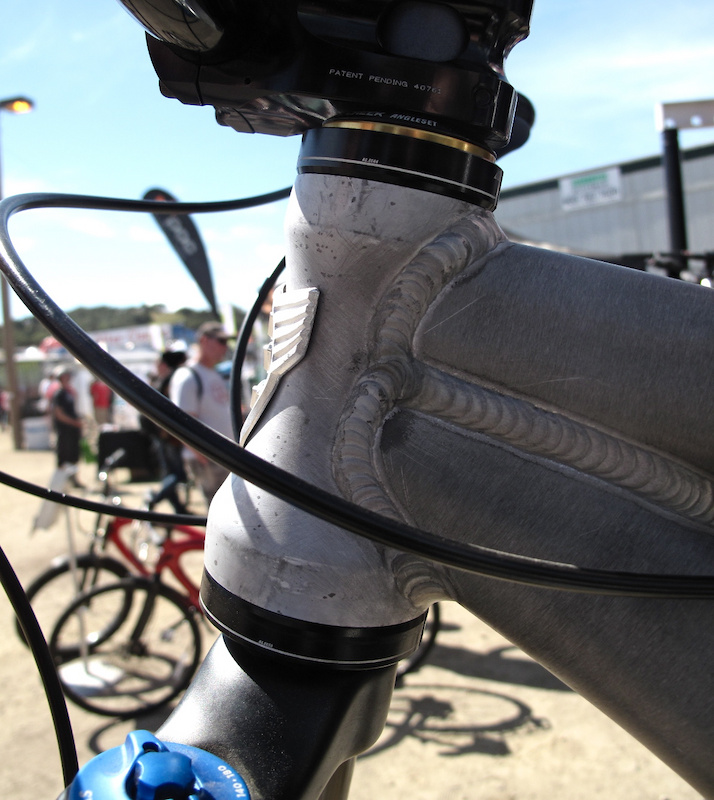

2.5 degrees of adjustment is possible by using an eccentric in both the upper and lower cups.
2.5 degrees of adjustment is possible by using an eccentric in both the upper and lower cups.


Ellsworth's prototype FR180 short travel DH bike had an EC44 cup installed up top and an EC56 in the bottom, both using gimbals, that allowed the bike to be slackened out by a massive 2.5 degrees. They were the only builder at the show using this combination and while it may sound excessive, it really shows how adaptable the AngleSet can make a bike.


Visit the Cane Creek website to learn more about the AngleSet.


Stay tuned for more from Sea Otter!
