Magura has an entirely new lineup of brakes for 2012, including their top of the line MT8 that uses a carbon thermoplastic material for the entire lever assembling - including the master cylinder. Check out the details inside.
Complete makeover for brake lever:The newly developed Carboflow process delivers massive savings in lever weight by using short to medium length carbon fibers in a thermoplastic matrix. The new process has also resulted in a design profile that allows the reservoir to be integrated extremely unobtrusively. Also new is the option of fitting the same brake lever to the left or right on the handlebar. This is supported by the use of a divided handlebar clamp for ultra-fast fitting and removal. The trigger shifter or the new Magura remote lever is quick and easy to fit using the two optional “Shiftmix” and “Remotemix” clamps. Filling the brakes is a clean procedure using a T25 EBT bolt. All the other bolts have likewise been standardised to T25 which in turn allows the brakes to be fully fitted and adjusted using just one tool.
 |
| The top of the line MT8. With its comprehensive use of the finest materials and the substantial application of FE analysis, MAGURA's top of the range model pulls off the absolute optimum balance between weight and stability. The newly developed Carbotecture SL is used for the brake lever, together with carbon on the brake lever and the clamp which now weighs just 2 grams. Both the carbon clamp and carbon lever are the products of a new type of Carbolay process and thus provide top strength combined with the lowest possible weight. aluminum bolts reduce the overall weight still further. Excellent heat release is achieved with the brake caliper due to its open design and large surface area. Weight MT8: 278g including the 160 Storm SL rotor. |
 |
| The one-piece brake caliper forged from a high performance aluminum alloy also delivers the ultimate in performance and safety on long downhill stretches with its superb heat release facility provided by the large surface area and open double arch design. Brake pads can be checked for wear and replaced as and when necessary from above without having to remove the wheel. The new MAGURA brakes (MT8, MT6, MT4) are supplied from the factory complete with a rotating hose fitting on the spoke side to prevent damage and to allow for a neat routing of the hose on a diverse range of frame designs. |
Brake lever:MAGURA consulted with ergonomists and universities to develop a broader and more ergonomic brake lever that sits well in both large and small hands. The carbon version is manufactured from Carbolay which allows the fibers to be orientated according to the directional stress within the lever. The result is an extremely light, rigid and safe carbon lever.
Brake disks:All models are supplied with the high-stability Storm SL or Storm disks in 200mm, 180mm and 160mm sizes. The Storm SL is also available in 140mm as an option.
 |

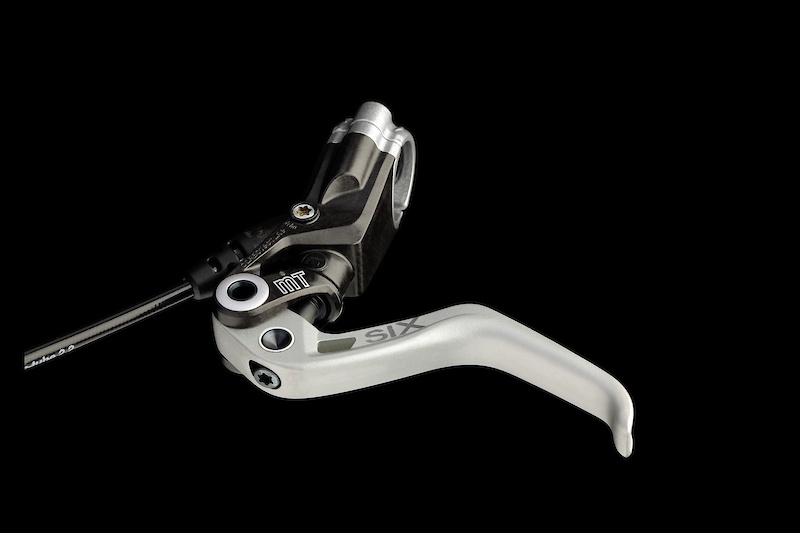

| The MT6. The structure of the brake lever is identical to that of the MT8, except for the use of an aluminum brake lever and aluminum clamp. Not quite so much weight is saved with the brake caliper as on the MT8 but the additional cooling fins compensate for this. Weight MT6: 310g including the 160 Storm SL rotor |
MAGURA Evolutionary Features:•
Anti-SquealA combination of coordinated brake pads and brake disk design counteracts the development of brake noise.
•
Anti-DragNewly developed sealing rings and a modified piston design ensure that even when operated in temperatures below zero or extremely muddy conditions the pistons always return to their original position and do not grind on the disk.
•
Anti-HeatThe entire system of the MT brake calipers is designed to release heat quickly into the atmosphere and prevent a reduction in performance.
•
Royal BloodMAGURA continues to rely on high-performance mineral oil as a brake fluid. With respect to health concerns it is completely harmless on contact with the skin and, unlike DOT, it does not absorb water over time and so no annual bleeding is necessary.
•
WarrantyOf course, the famous MAGURA five-year leak-proof warranty applies to the new brakes as well.
 |

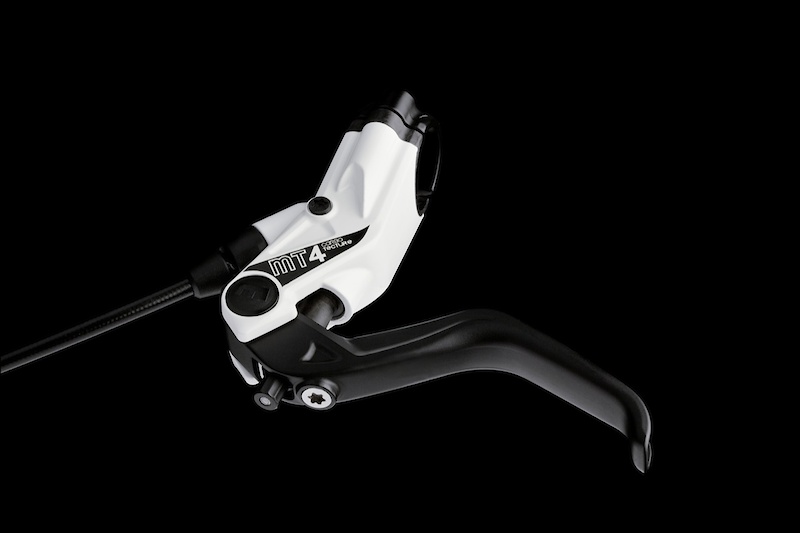

| The brake lever of the MT4 is manufactured from Carbotecture. As with the models toward the top end of the range, stability and rigidity are retained by using a greater capacity and wall thickness. Tool-free centre-of-pressure adjustment is also incorporated into the brake lever. The brake caliper is identical to that of the MT6. Weight MT4: 320g including the 160 Storm SL rotor |
 |

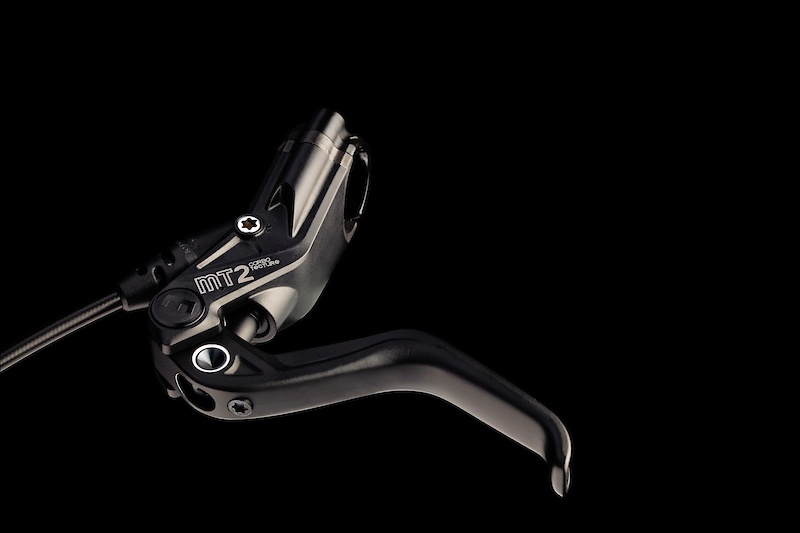

| The MT2.As with the MT4, the brake lever supplied on the basic model in the MT range is made from Carbotecture. The lever and clamp are manufactured from aluminum. The two piece brake caliper provides for a more economic production process, and Magura passes on this price advantage directly to the end customer. As a basic model, the MT2 is only behind its bigger sisters in tipping the scales, as it delivers the same braking power and optimum lever geometry as the models toward the top end of the range. Value for money even for the thrifty - and for all those who aspire to thrift. Weight MT2: 335g including the 160 Storm SL rotor. |
Check out the
Magura website to see their entire lineup.
There is no doubt that Magura is looking good for 2012, especially the top tier MT8 - is this the first mountain bike brake that uses a carbon master cylinder? None of us have had time on the new stoppers yet, but let's hear what you think about Magura using these materials in new places.
